Create an accountKEY PERFORMANCE FACTORS
Lighter weight
EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.
Advanced cockpit control
RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.
More power
New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterizes SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.
-
MotorGiant SyncDrive Pro2 Mg, 85Nm, PedalPlus 6-Sensor technology
-
ControllerGiant RideControl Ergo3, grip integrated remote
-
DisplayGiant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display
-
BatteryGiant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
-
SizesS, M, L, XL
-
ColoursHelios Orange
-
FrameAdvanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
-
ForkMarzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
-
ShockFox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
-
HandlebarGiant Contact SL 35 Trail, 35x780mm
-
GripsGiant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
-
StemGiant Contact SL 35
-
SeatpostTranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
-
SaddleGiant Romero
-
Pedalsn/a
-
ShiftersShimano Deore
-
Front DerailleurMRP HD2 co-moulded chain guide
-
Rear DerailleurShimano Deore 12-speed, Shadow+
-
BrakesShimano BR-MT420, 4-piston, hydraulic disc,203mm [F/R]
-
Brake LeversShimano Deore, I-spec EV
-
CassetteShimano CS-M6100-12, 10-51T, 12-speed
-
ChainKMC e.12 Turbo, EcoProteq, e-bike optimized
-
CranksetPraxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S:160, M/L:165, XL:170)
-
Bottom Bracketn/a
-
RimsGiant AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R]
-
HubsShimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
-
SpokesSapim E-Lite [R] Race [F], e-bike optimized
-
TiresMaxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
-
ExtrasTubeless kit (liquid, valves, levers, manual, tool)Inner tube supplied
-
LightingOptional:- Giant Recon series e-bike lights available and direct connectable
-
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
Add your review

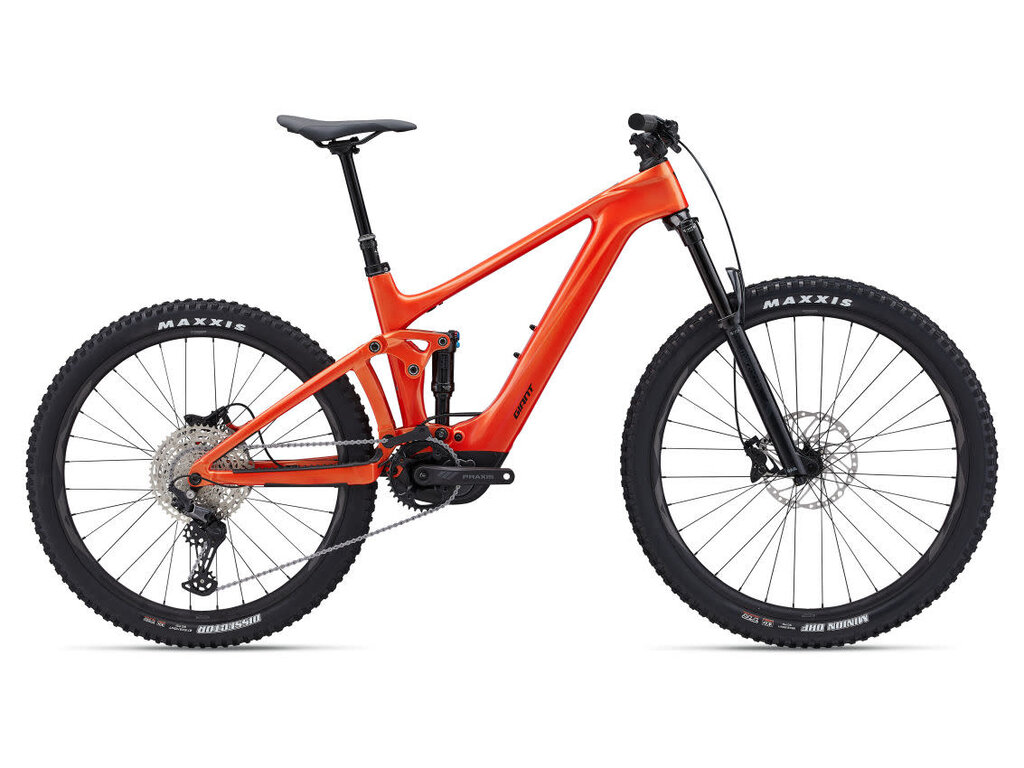

Review Giant 2024 Trance X Advanced E+ EL 3
