Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Highlights

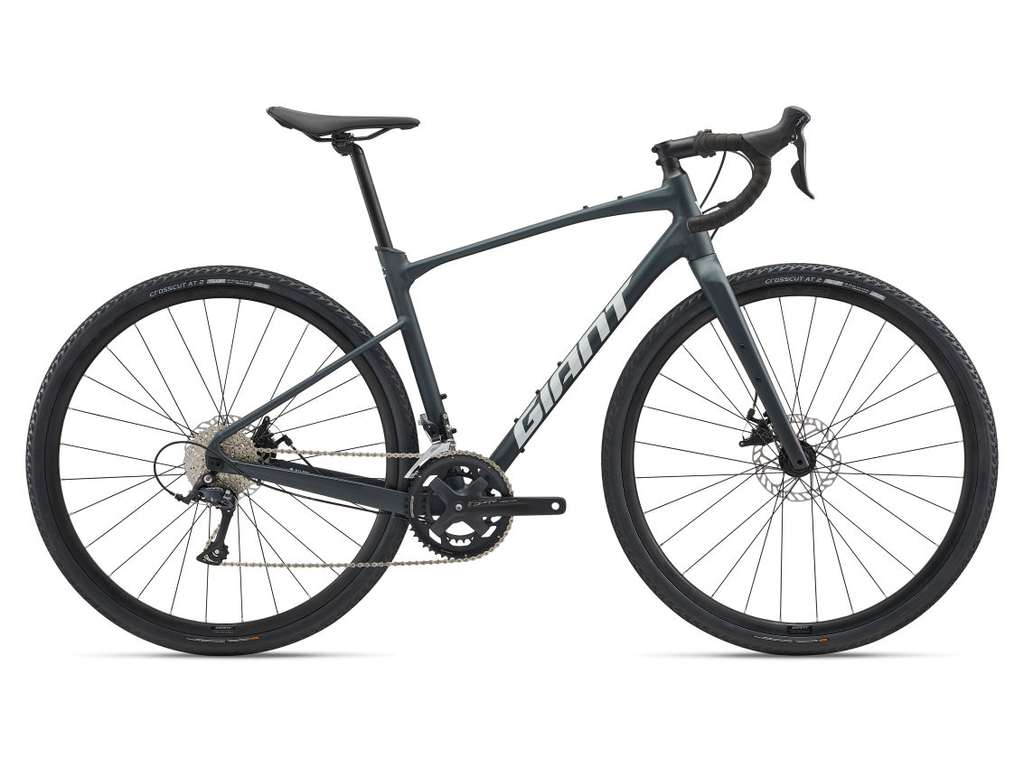

The versatile Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.
Aluxx Aluminum
This Performance-grade material features 6061 alloy with single-butted tubes to produce a strong, lightweight frameset.
Composite Fork
Advanced-grade composite fork with an OverDrive tapered steerer tube absorbs road shock and vibrations and allows added clearance for tires up to 53mm wide.
Flip Chip Dropout
Geometry, wheelbase and rear tire clearance can be adjusted with eccentric, offset two-position hardware in the rear wheel dropouts. A longer wheelbase adds stability and increases tire clearance, while a shorter wheelbase delivers a quicker, more agile ride.
Compact Road
A downward sloping top tube (from the head tube to the seat tube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
D-Fuse Technology
Proprietary D-shaped composite seatpost and handlebar work together to dampen vibrations and absorb road shock, resulting in a smooth, compliant ride quality.
Seatpost Adaptor
Frame design allows you to switch from the proprietary D-Fuse seatpost to a standard round 30.9mm seatpost. This enables riders to choose any type of seatpost, including a dropper seatpost, depending on riding style and terrain.
Disc-Brake Integration
The frame and fork are engineered specifically for disc-brakes for reliable braking performance in all weather and road conditions.
OverDrive
Giant’s proven oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
MegaDrive
A massive down tube and oversized top tube work in unison to provide superior front end lateral and torsional stiffness. The precisely engineered, rectangular shaped down tube yields unprecedented steering precision and pedaling performance.
PowerCore
A massively oversized bottom bracket area features a fully integrated 86mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
-
SizesXS, S, M, M/L, L, XL
-
ColoursAsphalt Green, Storm Cloud
-
FrameALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
-
ForkAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
-
HandlebarGiant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
-
Gripscork tape with gel
-
StemGiant Sport, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
-
SeatpostGiant D-Fuse, alloy, 14mm offset
-
SaddleGiant Approach
-

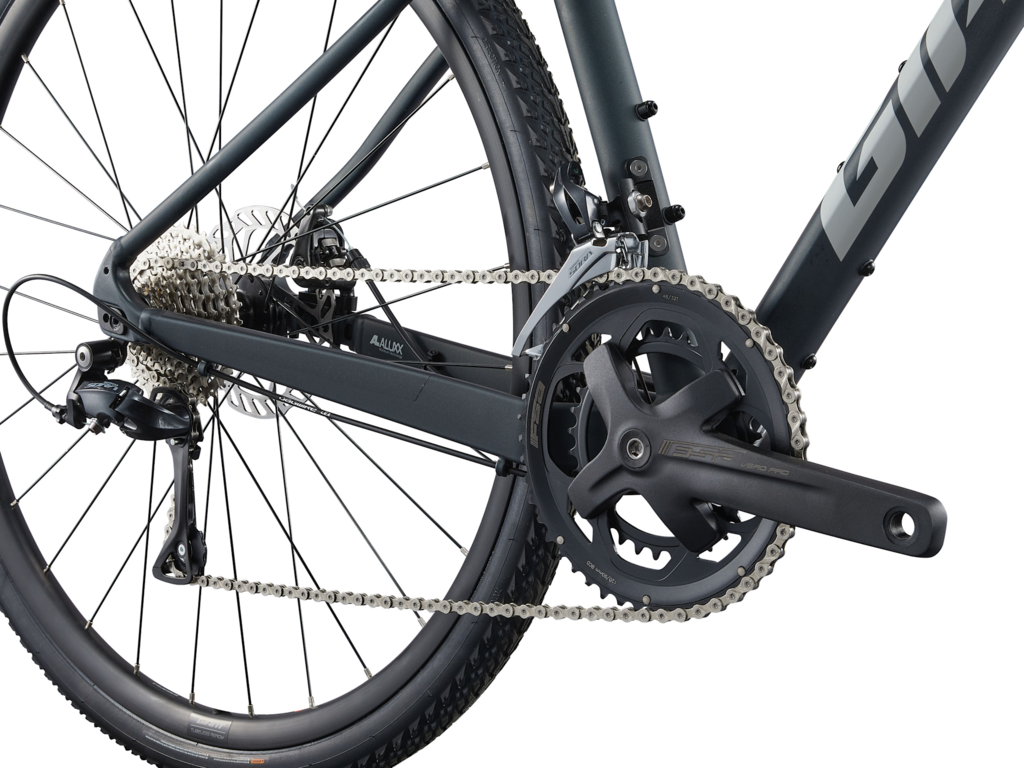

ShiftersShimano Sora, 2x9
-
Front DerailleurShimano Sora
-
Rear DerailleurShimano Sora, long cage
-
BrakesTektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
-
Brake LeversShimano Sora
-
CassetteShimano HG400, 11x34
-
ChainKMC X9 with Missing Link
-
CranksetFSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
-
Bottom Bracketcartridge
-
RimsGiant S-X2 Disc wheelset, alloy
-
HubsGiant alloy, 12mm thru-axle
-
Spokesstainless
-
TiresGiant CrossCut AT 2, 700x38c, tubeless
-
Extrastubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
-
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
