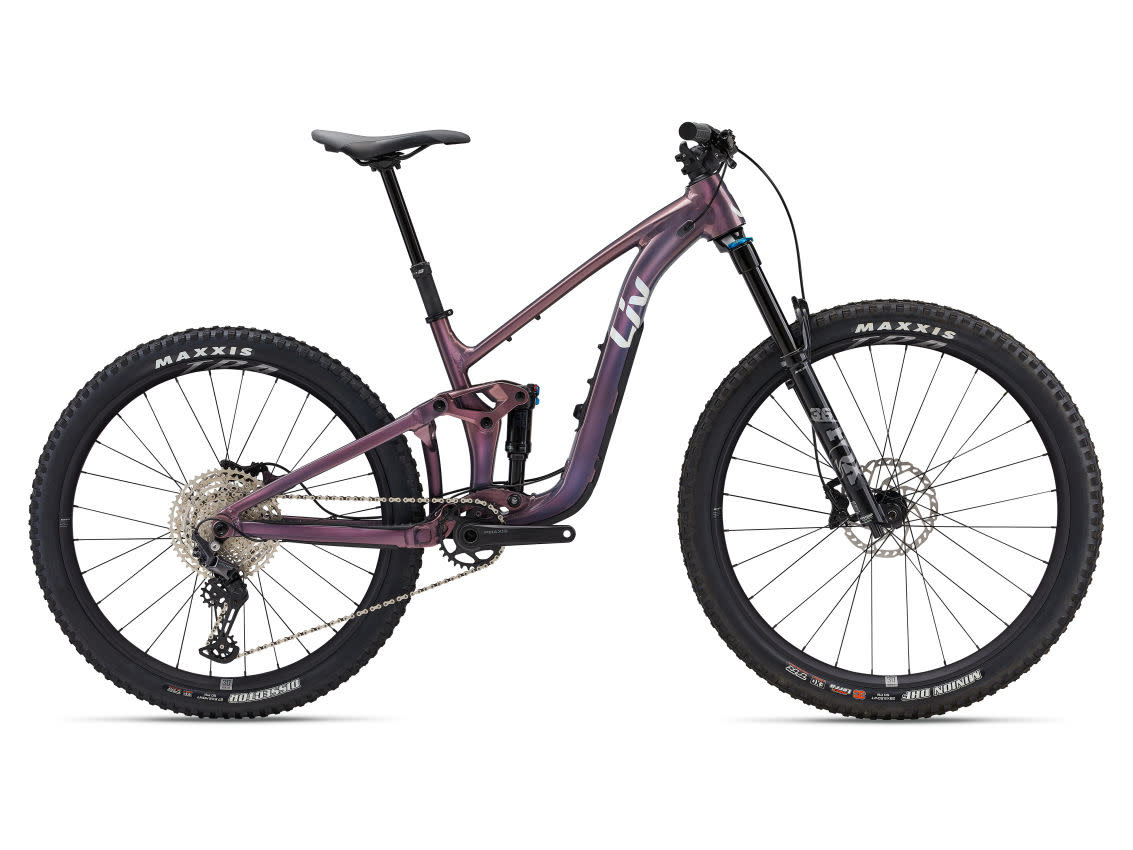

Liv 2024 Intrigue X 2

C$3,899.99
1 In stock
in between. Extremely customizable with adjustable geometry, frame storage, and wheel options, the Intrigue X delivers extra performance and fun.
Add to cart

Key Performance Factors

Performance Mid Travel Trail

Constructed with lightweight and durable ALUXX SL-grade aluminum, the frame boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.

Adjustable Frame Geometry

For ultimate adjustability, the Intrigue X features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimize your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for M and L only

Best of Both Wheels

Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L

Highlights

ALUXX SL-GRADE ALUMINUM FRAMESET

State-of-the-art aluminum frameset material features best-in-class strength-to-weight ratios and unique welding technologies for a high-performance ride quality.

MAESTRO SUSPENSION TECHNOLOGY

Four strategically positioned pivot points and two linkages work together to create a single floating pivot point for the most active, efficient, and reliable suspension system.

ADVANCED FORGED COMPOSITE TECHNOLOGY

The upper rocker arm is crafted using Advanced Forged Composite Technology which offers increased stiffness, durability, and lighter weight.

OVERDRIVE

Our oversized fork steerer tube technology is specifically engineered to deliver precise front-end steering performance. With oversized headset bearings (1-1/2” lower and 1-1/8” upper) and tapered steerer tube, this system works together to provide the ideal balance of steering stiffness and responsiveness.

TRUNNION MOUNT

Integrated shock mount produces a lower leverage ratio for increased pedaling and braking efficiency.

ADJUSTABLE GEOMETRY

The flip chip – Maestro 3 allows you to quickly adjust the frame geometry to match your riding style and rear-wheel size choice. It includes two flip chips: a high/low chip and a mid-position chip. Transitioning from low to mid changes the seat tube and head tube angles by 0.4 degrees, and from mid to high by 0.3 degrees. The bottom bracket height adjusts by 5mm between the three positions.

ADJUSTABLE REACH

The flip chip – headset features two different “chips”, or headset cups, placing the headset/reach in either a -5mm (short), 0mm (mid), or +5mm (long) offset position. This allows you to customize the bike’s reach to suit your preference and individual fit.

MX CONFIGURATION

Frame sizes XS and S are solely designed for an MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear and can accommodate a 27.5-inch wheel in the rear.

GIANT TRA WHEELSYSTEM

This tubeless wheelsystem features lightweight alloy rims with Wide Guard technology, providing a 30mm inner rim width and a sturdy 5mm sidewall for enhanced durability and puncture resistance, while supporting lower tire pressure for improved grip and control on rough terrain. Maximum tire size is 2.5 inches.

BOOST HUB SPACING WITH UDH COMPATIBILITY

Boost 15x110 [F], 12x148 [R] hub spacing, combined with Universal Derailleur Hanger (UDH) compatibility, enhances stiffness, trail handling, tire clearance, and drivetrain durability.

FRAME MOUNTS

Underneath the top tube, discover a set of frame mounts to secure a compact gear bag — perfect for must-have tools or snacks.

  • Sizes
    XS, S, M, L
  • Colours
    Desert Dawn
  • Frame
    ALUXX SL-grade aluminum front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage
  • Fork
    Fox 36 Float Rhythm, 150mm, GRIP damper, Boost 15x110 Kabolt X, tapered, 44mm offset
  • Shock
    Fox Float Performance, 185x52.5, custom tuned for Liv
  • Handlebar
    Giant Contact TR35, 20mm rise, alloy XS: 760mm, S: 760mm, M: 760mm, L: 780mm
  • Grips
    Liv Tactal Pro single lock-on
  • Stem
    Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm
  • Seatpost
    "Giant Contact Switch AT, adjustable dropper, remote XS/S: 140-170mm travel / 30.9 x 470mm M/L: 170-200mm travel / 30.9 x 530mm"
  • Saddle
    Liv Sylvia
  • Pedals
    N/A
  • Shifters
    Shimano Deore, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Deore, Shadow +
  • Brakes
    Shimano BR-MT420, hydraulic, Shimano RT-66 [F] 203mm, [R] 180mm
  • Brake Levers
    Shimano BL-MT401
  • Cassette
    Shimano Deore M6100, 10x51
  • Chain
    KMC X12
  • Crankset
    Praxis Cadet M24 Boost, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm
  • Bottom Bracket
    Praxis, press fit
  • Rims
    Giant TRA 2 6061 alloy, sleevejoint, 30mm IW, 40mm OW, 21mm H, Wide Guard technology XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29
  • Hubs
    [F] Giant MTB alloy, 6-bolt, sealed [R] Giant MTB alloy, 6 bolt, 72t POE, 6-pawl, sealed
  • Spokes
    Sapim Race j-bend
  • Tires
    [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless XS/S: [R] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless M/L: [R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
  • Extras
    tubeless prepared, 2.5" max tire size, 34t max chainring size, integrated down tube storage bag
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
